Show playlist at different time

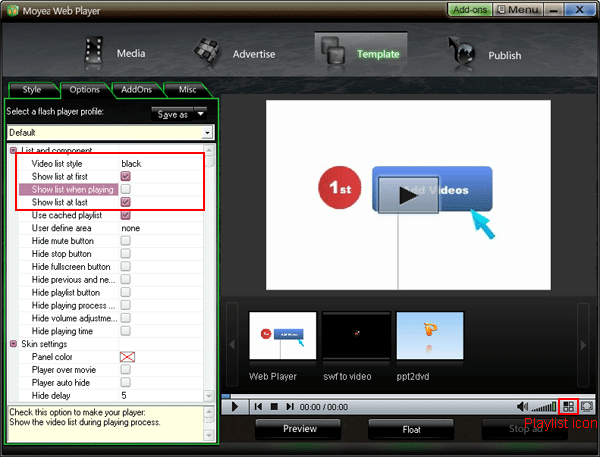

Whether the playlist will show or not, and at what time it will show can be configured on the following interface of PlayerDIY Web Player.

To make the playlist shown, the value of “Video list style” must be “black” or “slider”.
“Show list at first” -- Show the playlist before the video starts playing
“Show list when playing” – Show the playlist when the video being played
“Show list at last” – Show the playlist after the video playing is finished
“Hide playlist button” – Hide the playlist button on control bar. If this option is not checked, the playlist button can be clicked to show and hide playlist, otherwise, the playlist button and playlist would be hidden.

To implement the first demo above with flashvars code, the embed code will be as below:

<script type="text/javascript" src="swfobject.js"></script>
<div id="flashcontent" align="center"></div>
<script type="text/javascript">
var so = new SWFObject('mwplayer.swf','player','500','450','9');
so.addParam('wmode','opaque');
so.addParam('quality','high');
so.addParam('allowfullscreen','true');
so.addParam('allowscriptaccess','always');
so.addParam('flashvars','playerOpts=ShowListAtFirst*true*b||ShowListAtLast*true*b');
so.write("flashcontent");
</script>

The line of the red code is the flashvars code for setting to show playlist at the first frame and the last frame. if playerOpts=ShowListAtFirst*true*b||ShowListAtMidst*true*b||ShowListAtLast*true*b, the player will show playlist all the time. Get more information about flashvars code.
